MP18-140 Series ADSL/POTS SPLITTER
•ADSL / POTS splitter(CO)
•POTS Impedance 600ohm
•Meets: YD/T 1187-2006; ETSI TS 101 952-1-1
•Metering Pulse to Relating at 12kHz or 16kHz is optional
•Compatible with ADSL2+,VDSL and VDSL2+
•Passive Elements Only and V0 acc. UL94



■ Electrical Characteristics @25℃

ITEM

FREQUENCY

SPECIFICATION

DC Current



100mA MAX

Total DC Resistance



25Ω MAX

POTS Impedance



600Ω

POTS Insert Loss

1020Hz

-0.3dB MAX

POTS Insert Loss Distortion relative to 1020Hz

300Hz - 3.4kHz

0.3dB MAX

POTS Insert Loss at 12kHz or 16kHz(200ohm)*

12kHz or 16kHz

-5dB MAX

POTS Return Loss

300Hz - 500Hz

-14dB MIN

500Hz - 2kHz

-18dB MIN

2kHz - 3.4kHz

-14dB MIN

POTS Group Delay

500Hz - 2.8kHz

150μs MAX



xDSL Isolation

30kHz - 138kHz

-55dB MIN

-45dB MIN*

138kHz - 1104kHz

-55dB MIN

1104kHz - 4.4MHz

-55dB MIN

4.4MHz - 12MHz

-55dB MIN  ( VDSL )

12MHz - 30MHz

-50dB MIN  ( VDSL2+ )



Unbalance about earth

50Hz - 600Hz

-40dB MIN

600Hz - 3.4kHz

-46dB MIN

3.4kHz - 30kHz

-40dB MIN

30kHz - 1104kHz

-45dB MIN

1104kHz - 4.4MHz

-30dB MIN

4.4MHz - 30MHz

-30dB MIN

*: 12kHz optional electrical characteristic

*Custom splitter can be designed to meet specific requirements

■ Structure
■ Model for Order


Model

YD/T

ETSI

Diagram No.

MP18-141

1

MP18-142

2

MP18-143

3

MP18-145

4

MP18-146

5

MP18-147b

6

MP18-148

7



■  Apparatus Diagram(Unit: mm)

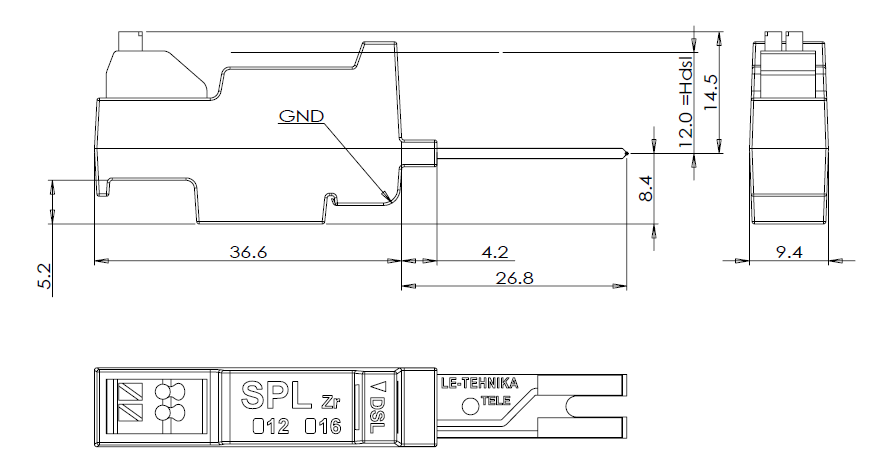

1. MP18-141


1st order HPF, 3rd order HPF is optional

Over-voltage and over-current protection is optional

2. MP18-142




3. MP18-143


1st order HPF, 3rd order HPF is optional

Over-voltage and over-current protection is optional

Compatible with VDSL2+

4. MP18-145


for JPX668B Test wiring block

1st order HPF

Over-voltage and over-current protection is optional

Compatible with VDSL2+

5. MP18-146

1st order HPF, 3rd order HPF is optional

Metering Pulse to Relating at 12kHz or 16kHz is optional

Over-voltage protection is optional

Compatible with VDSL2+ is optional

6. MP18-147-b


1st order HPF, 3rd order HPF is optional

Over-voltage and over-current protection is optional

7. MP18-148




1st order HPF, 3rd order HPF is optional

Over-voltage and over-current protection is optional



1st order HPF, 3rd order HPF is optional

Over-voltage and over-current protection is optional
