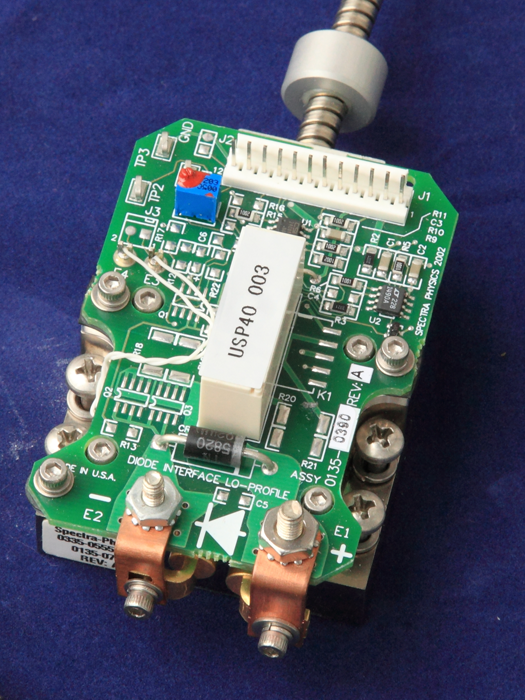

USP Series Laser Diode Module

·808nm Laser Diode Module
·designed for Spectra Physics T20, T40, T80, J20, J40, J80; ESI 4990
·guaranteed performance for at least 15 months/10000 hrs. (Free exchanges within product warranty)
·fully compatible including mounting dimensions, interface socket, EEPROM data, NTC sensor and protection relay.
·all traceable Laser parts and PCB record.


■ Optical and Electrical Characteristics

Parametric

USP 20

Optical Output Power

 15W Max

Threshold Current

 6.8 A

Slope

 1.16

Typical Operating Current @FC

19.7A @13W typ.

Operating Voltage

2.2 V Max

Center Wavelength (nm)

807.7

FWHM (nm)

1.7

Fiber NA

0.12±0.02

 Fiber Output Port

FC



Parametric

USP 40

Optical Output Power

 30W Max

Threshold Current

 7.4 A

Slope

 1.15

Typical Operating Current @FC

38.5A @26W typ.

Operating Voltage

2.2V Max

Center Wavelength (nm)

807.7

FWHM (nm)

1.7

Fiber NA

0.12±0.02

 Fiber Output Port

FC
